อุปกรณ์ควบคุมพลังงาน Smappee Infinity

Smappee Infinity

เป็นอุปกรณ์ All-in-one สำหร้บ energy management / controller ที่สามารถตรวจดูระดับพลังงาน และทำ load balance ระหว่าง ระบบโซลาร์ พลังงานแสงอาทิตย์ ระบบ EV chargerและ อุปกรณ์ที่ใช้พลังงานไฟฟ้า อื่นๆ  ทั้งในบ้าน หรือ ในอาคาร  ผ่าน  แอพพลิเคชั่นที่เป็น Cloud based


Modular Solution

ลูกค้า หรือผู้ใช้ แต่ละรายจะมีความต้องการที่แตกต่างกัน จุดนี้เอง Smappee ได้ออกแบบอุปกรณ์ที่เป็นลักษณะ โมดูลาร์ เพื่อตอบสนองการติดตั้ง การตรวจวัด ที่แตกต่างกันได้ ในกลุ่มลูกค้า



Smappee Use cases

https://www.smappee.com/use-cases/

ข้อมูลเพิ่มเติม

Data Measurement

Smappee CT Hub จะสามารถ รวบรวมข้อมูลการใช้พลังงาน ได้ถึง 4 CT (current transfomer) ตัววัดกระแส รวมถึงรองรับการใช้ Rogowski Coils สำหรับวัดกระแสได้สูงถึง4000 A

นอกจากนั้นยังสามารถวัด ของไหล เช่น น้ำประปาได้ ด้วย

ข้อมูลเพิ่มเติม

Data Calculation

การคำนวนข้อมูลต่างๆ  ทำงานผ่าน Smappee Power Box ด้วยอุปกรณ์ตัวนี้ จะดึงค่าจาก CT ต่างๆ มาประมวลผล ก่อนส่งค่าไปยัง cloud based application

ข้อมูลเพิ่มเติม
Smappee Genius module

Communication

Smappee Genius จะทำหน้าที่เป็น Gateway ให้กับอุปกรณ์ ทั้งหมดในการเชื่อมต่อ  เข้าสู่  cloud based application มีทั้งแบบ เชื่อมต่อผ่าน LAN และ Wifi

ข้อมูลเพิ่มเติม

Control

ควบคุมพลังงาน ในบ้าน และอาคาร รวมถึง EV charger

ข้อมูลเพิ่มเติม

Smappee กับ Building Management

เชื่อมต่อกับระบบจัดการพลังงานในอาคาร

ด้วย Smappee Infinity ทำให้เราสามารถเชื่อมต่อกับระบบอื่นๆ ได้ เพื่อจัดการพลังงานในอาคาร เช่น Air condition และอื่นๆ




ข้อมูลเพิ่มเติม

ข้อมูลเพิ่มเติม

การเชื่อมต่อเข้าระบบไฟฟ้า

ข้อมูลเพิ่มเติม

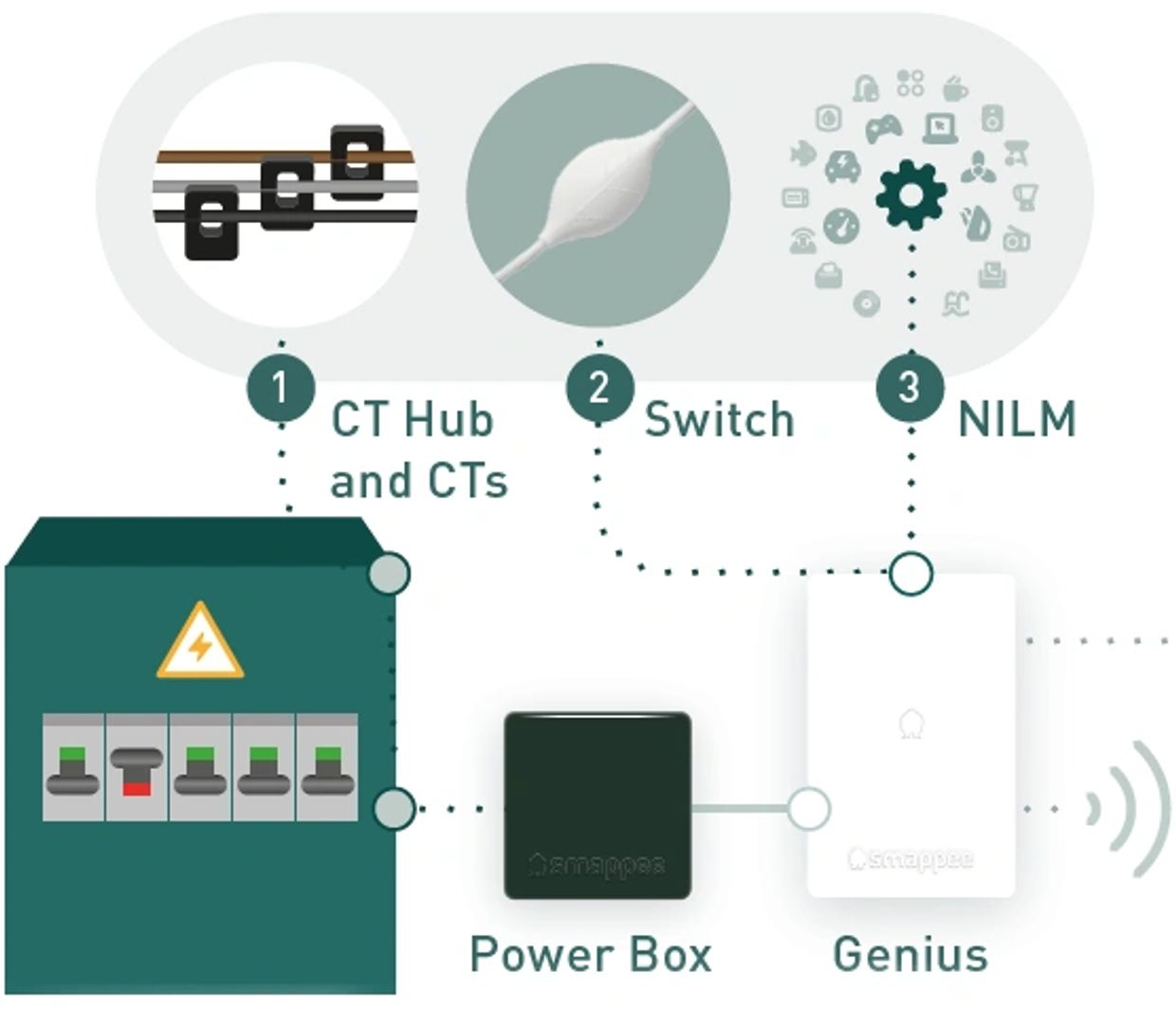

รูปแสดงการเชื่อมต่อของระบบ Smappee Infinity


เรียนรู้เพิ่มเติม

ข้อมูลเพิ่มเติม

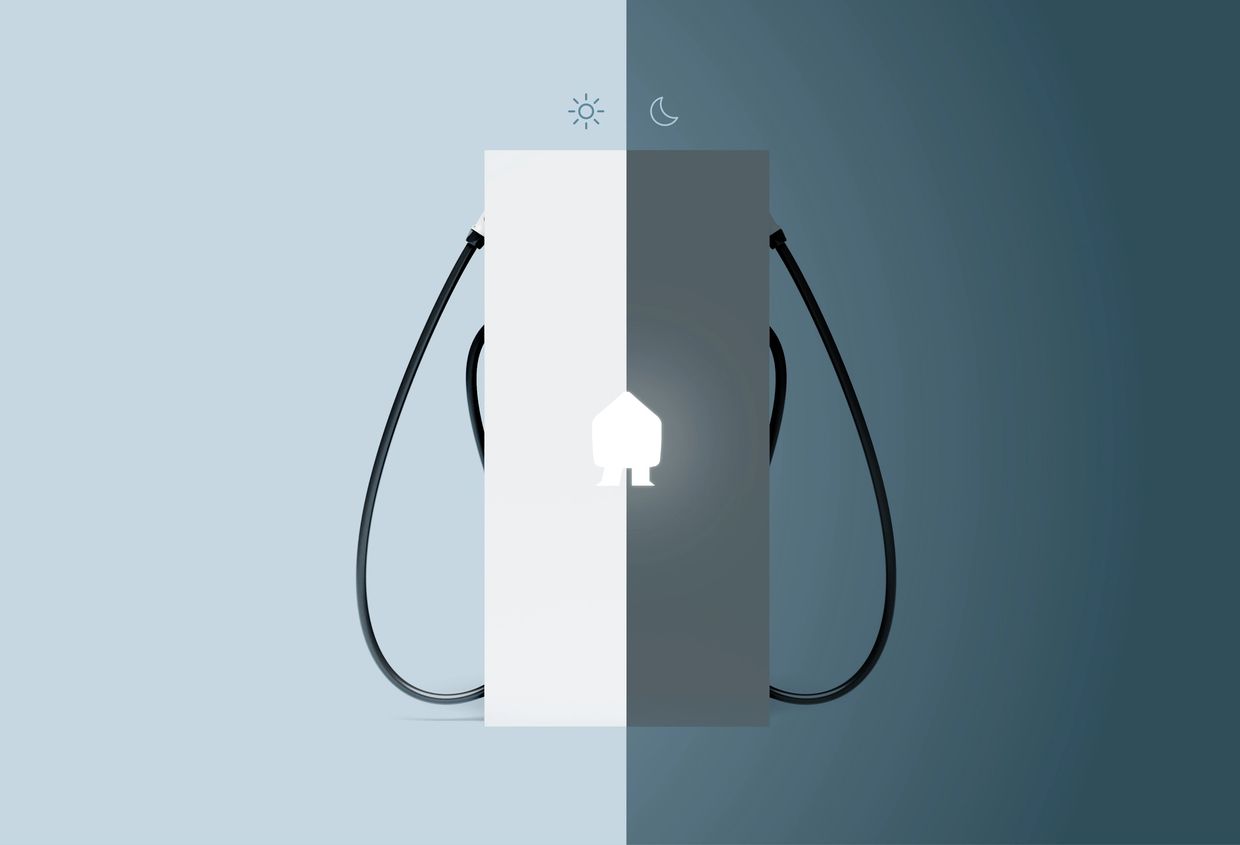

Smappee EV Base

รายละเอียดทางเทคนิค

•Dimensions:

•1200 x 600 x 150 mm (station)

•2 x 2500 mm (charging cables)

•Weight: 20 kg (28 kg incl. 2 cables)

•Operating temperature: -25 °C to 60 °C

•Storage temperature: -25 °C to 80 °C

•Relative humidity: 0 % - 95 %, non-condensing

•Standards: IEC 61851-1 (2017)

•Product certifications: CE

•Integrated Residual Current Monitor (RCM):
Rated operating residual current detection: 6mA DC / 30 mA AC (per connector)


•Connectivity:

•Wi-Fi 2.4 GHz

•Ethernet 100BASE-T

•LTE CAT M1 or NB2

•Communication protocol: OCPP 1.6 J


•Charging:

•Maximum charging capacity: Single or 3-phase, 3.7 to 22 kW per connector

•Charge mode: Mode 3 (IEC 61851)

•Session activation: QR code / Plug and charge / RFID

•Information status: RGB LED

•MID consumption monitoring


•Enclosure:

•Material: aluminium(structure), outdoor high-pressure laminate (casing)

•Rating: IP55 / IK10

•Standard colours: RAL9016 (star white) + RAL7021 (black grey)


•Connectors:

•2 charging cables with type 2 connector

•Connection case: 2 × case C (fixed cable)

•Mounting method: Floor

Smappee EV Base

ข้อมูลเพิ่มเติม ในการใช้งานและติดตั้ง

ข้อมูลเพิ่มเติม

ความสามารถของ Smappee EV Base

EV Base charging

การชาร์จและการตัดเงิน

Overload protection

EV charger โดยมีการควบคุม เพื่อป้องกันการ overload

Schedule your car charging

EV charger สามารถตั้งเวลาในการ charge  ได้

Smappee EV Base
